082H8056 Danfoss Valve Actuator | To Suit valve DN10-DN32 | 24Vac/Vdc | Danfoss Valve Actuators | ideal for control valve type AB-QM

In HVAC and ventilation systems, Danfoss actuators are used to effectively regulate steam and conserve energy.

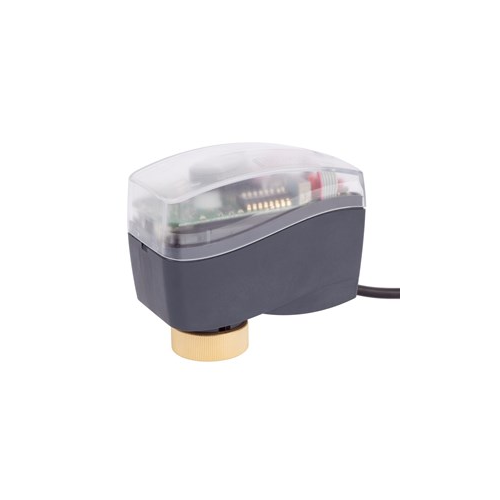

The actuator Danfoss 082H8056 is used to control valves.

Using this Danfoss actuator, the torque force is 300 N

The Power Supply is 24 V

This valve actuator is appropriate for valves with nominal diameter DN10-DN32

Danfoss goods that are in stock at IACS are eligible for free delivery and delivery within 1-2 days.

Consult the Danfoss Manual datasheet for further details.

The 082H8056 Danfoss Valve Actuator is a high-performance and reliable solution for industrial and commercial applications.

With a gross weight of 0.34 kg and a net weight of 0.33 kg, this actuator is lightweight and easy to install.

It is approved to the EC EN 60730 standard and has a cable length of 1.5 meters with 3-wire cable type.

The actuator is compatible with AB-QM size DN 10-32 and has a 3-point control signal type.

It also has an IP 42 protection class and is compliant with REACH regulations, with no candidate list substances above 0.1% including lead.

The spindle speed is 24 s/mm, with a stroke of 5 mm, and a supply voltage of 24 V AC. This Danfoss Valve Actuator is a durable and efficient solution for your fluid control needs.
