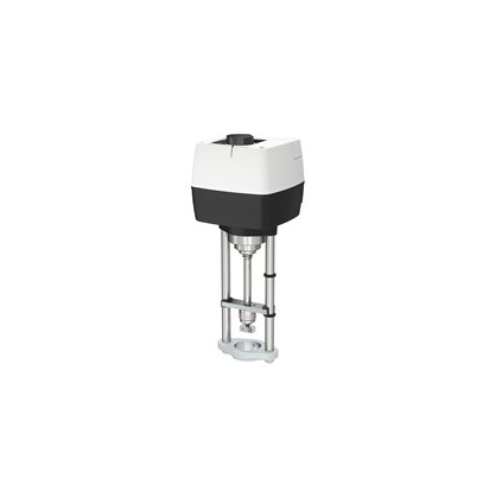

082H5013 Danfoss Spring Return Actuator To Suit valve DN200-DN250 | AME685-1 | 24Vac/Vdc | ideal for AB-QM pressure independent control valves

In HVAC and ventilation systems, Danfoss actuators are used to effectively regulate steam and conserve energy.

The Spring Return Actuator Danfoss 082H5013 is used to control valves.

The Power Supply is 24 V

This valve actuator is appropriate for valves with nominal diameter DN200-DN250

Danfoss goods that are in stock at IACS are eligible for free delivery and delivery within 1-2 days.

Consult the Danfoss Manual datasheet for further details.

The 082H5013 Danfoss Valve Actuator is a high-quality gear actuator that is designed to provide precise control of valves in a wide range of industrial applications. With a gross weight of 8.64 kg and a net weight of 5.79 kg, this actuator is built to withstand heavy use and provide long-lasting performance. It is UL 60730 approved and compatible with AB-QM size 8-10” and DN 200-250.

This actuator features a control input signal Y of 0(4) - 20 mA and 0(2) - 10 V, and is capable of modulating or 3-point control. It has an IP54 protection class and is designed for use with a 24 V AC or DC power supply. The stroke of the actuator is 32 mm and the type is AME 685-1. It does not include cable.

The 082H5013 Danfoss Valve Actuator is a reliable and durable choice for a wide range of industrial applications and is ideal for controlling valves in demanding environments.
