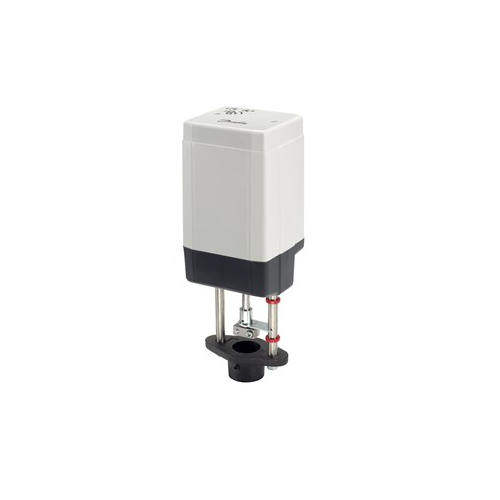

082H3078 Danfoss Actuator AB-QM To Suit valve DN125-DN150 | 24Vac/Vdc | ideal for control valve type AB-QM

In HVAC and ventilation systems, Danfoss actuators are used to effectively regulate steam and conserve energy.

The actuator Danfoss 082H3078 is used to control valves.

The Power Supply is 24 V

This valve actuator is appropriate for valves with nominal diameter DN125-DN150

Danfoss goods that are in stock at IACS are eligible for free delivery and delivery within 1-2 days.

Consult the Danfoss Manual datasheet for further details.

For pressure-independent balancing and control valve type AB-QM from DN 40 to DN 100, the AME 435 QM actuator is used.

The actuator has the following unique qualities:

It automatically adjusts its stroke to the positions of the valve ends, which speeds up commissioning.

Flow can be altered on a valve in a variety of ways, from linear to logarithmic or the converse.

To prevent overloading of actuators and valves, the innovative design includes load-related "switching off."

Main data:
• Nominal voltage (AC or DC):
- 24 V, 50 Hz/60 Hz
• Control input signal:
- 0(4)-20 mA
- 0(2)-10 V
• Force: 400 N
• Stroke: 20 mm
• Speed (selectable):
- 7.5 s/mm
- 15 s/mm
• Max. medium temperature: 120 °C
• Self calibrating
• LED signalling
• External RESET button
• Output signal
• Manual operation
