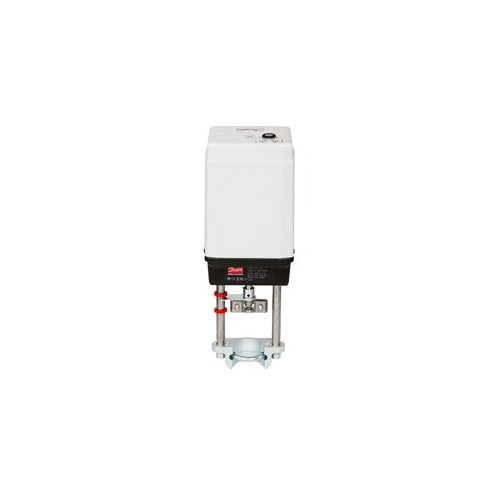

082H3022 Danfoss Valve Actuators | AME 55 | 24Vac (0-10v) | To Suit Valve DN100 | ideal for globe valves VFM2 VL 2/3 VF 2/3 AFQM

The Danfoss actuators are used in HVAC and ventilation systems to efficiently manage steam and save energy.

The Danfoss 082H3022 is an actuator used to manage valves.

The Torque force of this Danfoss actuator is 2000 N

The Power Supply is 24 V

This is a Plant Valve Actuator suitable for valves with Diameter Nominal DN100

Free Delivery and 1-2 Days Delivery available for Danfoss products in stock at IACS.

For more info, consult the Danfoss Manual datasheet.

The actuators are used with valves:
• VFM 2 (DN 65-150) only in combination with
AME 55,
• VFS 2 (DN 15-50) only in combination with
AME 56. Clutch available on special request,
• VFS 2 (DN 65-100),
• VL 2/3 (DN 100),
• VF 2/3 (DN 100-150),
• VL 2/3 & VF 2/3 (DN 65, 80) only in combination
with AME 56 and adapter 065Z0312,
• AFQM (DN 65-125) and AFQM 6 (DN 40-50)

Features:
• “Self adjustment” function
• Load related “Switch off“ function that
prevents valve or actuator to be overloaded
• Diagnostic LED

Main data:
• Nominal voltage: 24 Vac, 50/60 Hz
• Control input signal:
0(4)-20 mA,
0(2)-10 Vdc
• Force:
2000 N (AME 55),
1500 N (AME 56)
• Stroke: 40 mm
• Speed:
8 s/mm (AME 55),
4 s/mm (AME 56)
• Max. medium temperature: 200 °C by
insolated valve
• Manual operation
