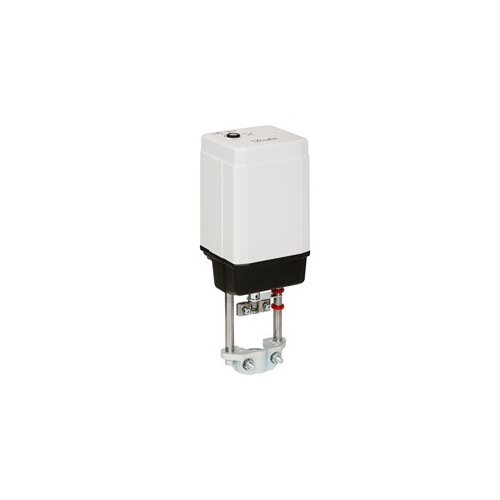

082H3021 Danfoss Valve Actuators | AMV 55 | 230Vac | To Suit Valve DN100 | ideal for globe valves VFM2 VL 2/3 VF 2/3 AFQM

The Danfoss actuators are used in HVAC and ventilation systems to efficiently manage steam and save energy.

The Danfoss 082H3021 is an actuator used to manage valves.

The Torque force of this Danfoss actuator is 2000 N

The Power Supply is 230 V

This is a Plant Valve Actuator suitable for valves with Diameter Nominal DN100

Free Delivery and 1-2 Days Delivery available for Danfoss products in stock at IACS.

For more info, consult the Danfoss Manual datasheet.

The actuators are used with valves:
• VFM2 (DN 65-150) only in combination with
AMV 55,
• VFS 2 (DN 15-50) only in combination with
AMV 56 and clutch 065Z7551,
• VFS 2 (DN 65-100),
• VL 2/3 (DN 100),
• VF 2/3 (DN 100-150),
• VL 2/3 & VF 2/3 (DN 65, 80) only in combination
with AMV 56 and adapter 065Z0312,
• AFQM (DN 65-125) and AFQM 6 (DN 40-50).

Features:
• Load related “switch off“ function that
prevents overloading
• Optional auxiliary switches, feedback
potentiometer and valve stem heater are
available.

Main data:
• Nominal voltage:
24 VAC 50/60 Hz,
230 VAC 50/60 Hz,
• Control input signal: 3 point
• Force:
2000 N (AMV 55),
1500 N (AMV 56)
• Stroke: 40 mm
• Speed:
8 s/mm (AMV 55),
4 s/mm (AMV 56)
• Max. medium temperature: 200 °C
• Manual operation
