082H0163 Danfoss Valve Actuators | AMV 435 | 230Vac | ideal for 2 and 3-way globe valves VRB, VRG, VF, and PIC valves type AB-QM
£287.99
£239.99
On request
SKU
082H0163
Next Supplier Stock Update: 16/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Manufacturer | Danfoss |
| Torque | 400 N |
| Ideal for | globe valves |
The Danfoss actuators are used in HVAC and ventilation systems to efficiently manage steam and save energy.

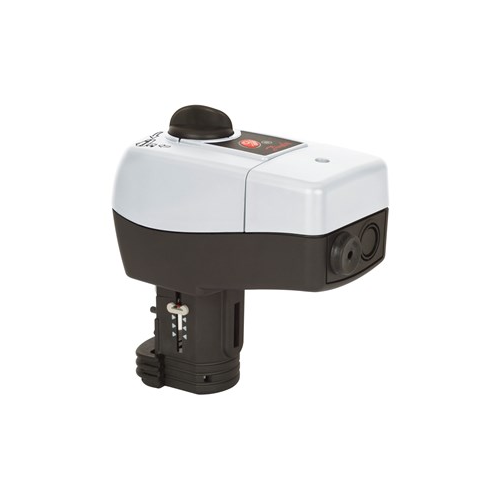

The Danfoss 082H0163 is an actuator used to manage valves.
The Torque force of this Danfoss actuator is 400 N
The Power Supply is 230 V
This is a Plant Valve Actuator suitable for valves with Diameter Nominal DN15-DN80
Free Delivery and 1-2 Days Delivery available for Danfoss products in stock at IACS.
For more info, consult the Danfoss Manual datasheet.
AMV 435 actuator is used with two and three-way valves type VRB, VRG, VF and VL up to DN 80 diameter and for AHQM DN 40-100. It is also used with pressure independent balancing and control valve type AB-QM from DN 40 to DN 100.
The advanced design incorporates load-related ‘switch-off’ to ensure that actuators and valves are not exposed to overload.
Main data:
• Nominal voltage:
- 24 VAC/DC, 50 Hz/60 Hz
- 230 VAC, 50 Hz/60 Hz
• Control input signal: 3 point
• Force: 400 N
• Stroke: 20 mm
• Speed (selectable):
- 7.5 s/mm
- 15 s/mm
• Max. medium temperature: 130 °C
• LED signalling
• End-position signals
• Manual operation
