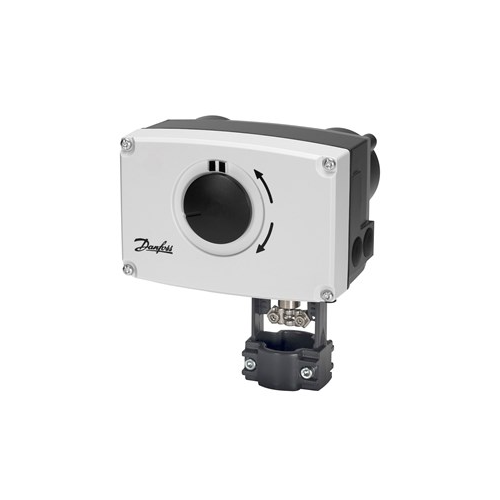

082H0122 Danfoss Valve Actuators | 24vac | AMV 438 SU Spring Return | To Suit Valve DN15-DN50 | ideal for 2 and 3-way globe valves VRB, VRG, VF

The Danfoss actuators are used in HVAC and ventilation systems to efficiently manage steam and save energy.

The Danfoss 082H0122 is an actuator used to manage valves.

The Torque force of this Danfoss actuator is 450 N

The Power Supply is 24 V

This is a Plant Valve Actuator suitable for valves with Diameter Nominal DN15-DN50

Free Delivery and 1-2 Days Delivery available for Danfoss products in stock at IACS.

For more info, consult the Danfoss Manual datasheet.

AMV 438 SU actuator is used with two and three-way valves type VRB, VRG, VF and VL up to DN 50 diameter.

The actuator has some special features:

• advanced design incorporates load related ‘switch-off’ to ensure that actuators and valves are not exposed to overload
• Safety function (spring up): In case of power failure or power switch off spring up function retracks actuator stem to end position. Further manual stem positioning is not disabled.

Main data:
• Nominal voltage:
- 24 VAC, 50 Hz/60 Hz
- 230 VAC, 50 Hz/60 Hz
• Control input signal: 3 point
• Force: 450 N
• Stroke: 15 mm
• Speed: 15 s/mm
• Max. medium temperature: 150 °C
• End-position signals
