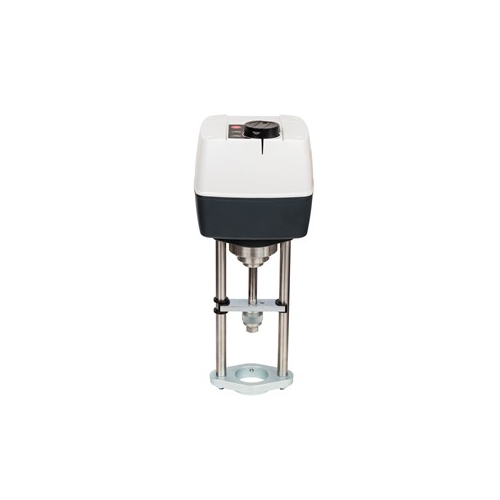

082G3500 Danfoss Valve Actuators | AME 685 | 24Vac/dc (0-10v) | ideal for globe valves type VF 3 DN 200-300

£3,575.99 £2,979.99 Price match guarantee
On request
SKU
082G3500
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeActuator
IP ratingIP54
ManufacturerDanfoss
Torque5000 N
Ideal for globe valves

The Danfoss actuators are used in HVAC and ventilation systems to efficiently manage steam and save energy.

The Danfoss 082G3500 is an actuator used to manage valves.

The Torque force of this Danfoss actuator is 5000 N

The Power Supply is 24 V

This is a Plant Valve Actuator suitable for valves with Diameter Nominal DN200-DN300

Free Delivery and 1-2 Days Delivery available for Danfoss products in stock at IACS.

For more info, consult the Danfoss Manual datasheet.

The actuator is designed to control the valve in response to the demand of a controller in District Heating/cooling, Heating, Ventilating and Air conditioning systems. The AME 685 can be controlled by electronic controllers with modulating or 3-point control output. Actuator can be used in combination with: Valve type VF 3 (DN 200-300)

Features:
• Manual operation mechanical and/or electrical
• Position indication, LED signalization
• Selectable speed 2,7 or 6 s/mm
• Automatic adaptation of stroke to valve’s end
positions that reduces commissioning time
(self stroking)
• Integrated auxiliary switch
• Characteristic optimization
• Adjustable stroke limitation
• Anti-oscillation function
• Pulse or continuous output signal (4&5)
• Voltage or current output signal X
• External reset button
• Auto detection of Y signal
• 3-point or modulating control selection
• Galvanic insulation Y&X and output terminal
(4&5)
• Thermal and overload protection
• Precise control and fast response in 3-point
mode (0,01 s)


Main data:
• Nominal voltage (AC or DC):
- 24 V, 50 Hz/60 Hz
- 230 V, 50 Hz/60 Hz
• Control input signal: modulating or 3-point
• Force: 5000 N
• Stroke: 80 mm
• Speed (selectable): 2,7 or 6 s/mm
• Max. medium temperature: 200 °C
