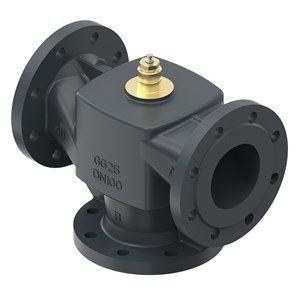

065B1685 Danfoss VF 3 Port Seated Plant Valves flanged | DN100 VF3 100/145 PN16 Kvs 145

HVAC, central heating, and district heating and cooling systems can all benefit from the dependable and precise fluid management offered by Danfoss Motorized Control Valves (MCV). This improves dependability and temperature control while also increasing the system's energy efficiency.

The Danfoss 065B1685 is a Seated Plant valve.

This type of valve is composed by 3 ports.

The Pressure Nominal is PN 16.

Free delivery and delivery within 1-2 days are available for Danfoss products that are currently in stock at iacs.

For more information, refer to the datasheet in the Danfoss Manual.

VF 2 and VF 3 valves provide a quality, cost-effective solution for most water and chilled applications.

The valves are designed to be combined with the following actuators:

DN 15-50 with AMV(E) 335, AMV(E) 435 or AMV(E) 438 SU actuators. With AMV(E) 25 (SU/SD) or AMV(E) 35 actuators (with adapter 065Z0311)

DN 65, 80 with AMV(E) 335 or AMV(E) 435 actuators. With AMV(E) 56 actuator (with adapter 065Z0312)

DN 100 with AMV(E) 55/56 or AMV(E) 65x actuators

DN 125, 150with AMV(E) 55/56, AMV(E) 65x or AMV(E) 85/86 actuators

DN 200-300 with AME 685 or AME 855 actuators

Features:
• Soft sealing design DN15-80, 200-300
• Snap mechanical connection together with AMV(E) 335, AMV(E) 435
• Dedicated 2 and 3-port valve
• Suitable for diverting applications (3-port)
Main data:
• DN 15-300
• kVS 0.63 -1350 m3/h
• PN 16
• Up to close A-AB
• Down to close A-AB (VF 3 DN 200-300)
• Temperature:
• Circulation water/glycolic water up to 50 %:
2 (–10*) … 130 °C (DN 15-100)
2 (–10*) … 200 °C (DN 125, 150)
2 (–10*) … 130 °C (DN 200-300)
* At temperatures from −10 °C up to +2 °C use stem heater
• Flange connections PN 16
• Compliance with Pressure Equipment Directive 97/23/EC
