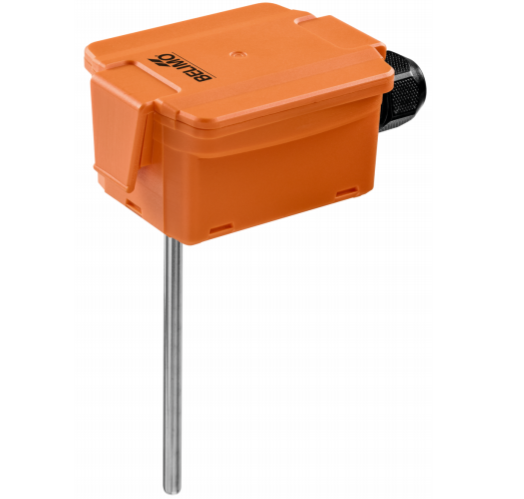

01DT-1AH - Belimo Duct/Immersion Temperature Sensor L=50 mm, D=6 mm, PT100
£33.43
£27.86
On request
SKU
01DT-1AH
Next Supplier Stock Update: 11/03/2025
Manuals & Datasheets
|
MANUAL |
RESISTANCE CHARACTERISTICS |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
|
| IP rating | IP65 |
| Output Signal | Pt100 |
| Manufacturer | Belimo |
| Sensor Type | Temperature |
| Sensor characteristics | Duct Mounted, Immersion |
| Probe Length | 50 mm |
Find every component of your Air Handling system at IACS. Temperature Sensors manufactured by Belimo that are now on hand can all be supplied free delivery or 1-2 working days delivery.
The Belimo 01DT-1AH is a Sensor that is employed in HVAC solutions and which offers clear temperature measurement.
The Sensor 01DT-1AH is a solution used for immersion measurement and duct measurement.
At IACS, you can get the best Belimo Sensor for your system at the right price.
Consult the Belimo custom datasheet above or contact IACS via email for personal ised ass istance if you have queries about size or installation.
| Electrical data | Electrical connection | Removable spring loaded terminal block max. 2.5 mm² |
| Cable entry | cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm | |
| Output signal passive temperature | PT100 | |
| PT1000 | ||
| Ni1000 | ||
| Ni1000TK5000 | ||
| NTC5k | ||
| NTC10k (10k2) | ||
| NTC10k Pre (10k3) | ||
| Media | Air | |
| Water | ||
| Measuring data | Measured values | Temperature |
| Measuring range temperature | -35...90 °C | |
| Accuracy temperature | PT.. : Class B, ±0.3 °C @ 0 °C | |
| Ni.. : ±0.4 °C @ 0 °C | ||
| NTC10k (10k2): ±0.22 °C @ 25 °C | ||
| NTC10k Pre (10k3): ±0.2 °C @ 25 °C | ||
| Materials | Cable gland | Plug Adapter: PA66, black |
| Nut: PA6, black | ||
| Housing | Cover: Lexan, Belimo orange NCS S0580- Y6OR | |
| Bottom: Lexan, Belimo orange NCS S0580- Y6OR | ||
| Seal: 0467 NBR70, black |
| Optional accessories | Description | Type |
| Mounting flange 6 mm, Plastic (adjustable), up to max. 120 °C | A-22D-A03 | |
| Mounting flange 6 mm, Brass, up to max. 260 °C | A-22D-A05 | |
| Mandatory accessories | Description | Type |
| Thermowell pocket Stainless steel, 50 mm, G1/2", SW27 | A-22P-A06 | |
| Thermowell pocket Stainless steel, 100 mm, G1/2", SW27 | A-22P-A08 | |
| Thermowell pocket Stainless steel, 150 mm, G1/2", SW27 | A-22P-A10 | |
| Thermowell pocket Stainless steel, 200 mm, G1/2", SW27 | A-22P-A12 | |
| Thermowell pocket Stainless steel, 300 mm, G1/2", SW27 | A-22P-A14 | |
| Thermowell pocket Stainless steel, 450 mm, G1/2", SW27 | A-22P-A16 | |
| Thermowell pocket Brass, 50 mm, G1/2", SW27 | A-22P-A18 | |
| Thermowell pocket Brass, 100 mm, G1/2", SW22 | A-22P-A20 | |
| Thermowell pocket Brass, 150 mm, G1/2", SW22 | A-22P-A22 | |
| Thermowell pocket Brass, 200 mm, G1/2", SW22 | A-22P-A24 | |
| Thermowell pocket Brass, 300 mm, G1/2", SW22 | A-22P-A26 | |
| Thermowell pocket Brass, 450 mm, G1/2", SW22 | A-22P-A28 | |
| For Immersion Application a Thermowell pocket A-22P-A.. is recommended. | ||
| Scope of delivery | Mounting Clip | |
| Screws | ||
| Adhesive foil |
