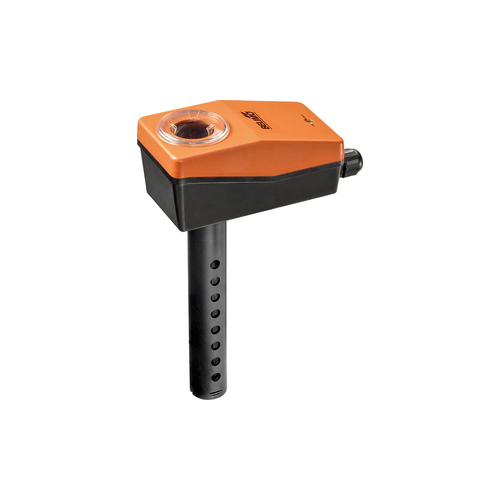

01DH-10N Belimo Humidistat
£189.84
£158.20
On request
SKU
01DH-10N
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Humidifiers & Spares |
| IP rating | IP55 |
| Manufacturer | Belimo |
| Sensor Type | Humidity |
| Probe Length | 150 mm |
The Belimo 01DH-10N is a Humidistat used for the detection of relative humidity. For regulation or control of fans, drying units and humidifiers. Installation in an air duct or on a wall.
| Output signal |
Switch |
| Additional features |
Auto-reset |
| Electrical connection |
1.5 mm2 Cu wire or 1.0 mm2 Cu strands (2-wire) |
| Output signal switch note |
changeover contact, isolated max. switching current 5 (3) A @ AC 250 V |
| Cable entry | Cable gland with strain relief Ø6...8 mm |
| Measuring values | Relative humidity |
| Measuring range humidity | 15...95% r.H. |
| Accuracy humidity | Setting accuracy: ±5% r.H. |
| Long-term stability | -1.5% r.H./a |
| Cable gland | PA6, black |
| Housing | Cover with lens: Lexan Bottom: PPS, PS and steel Seal: NBR and CR |
