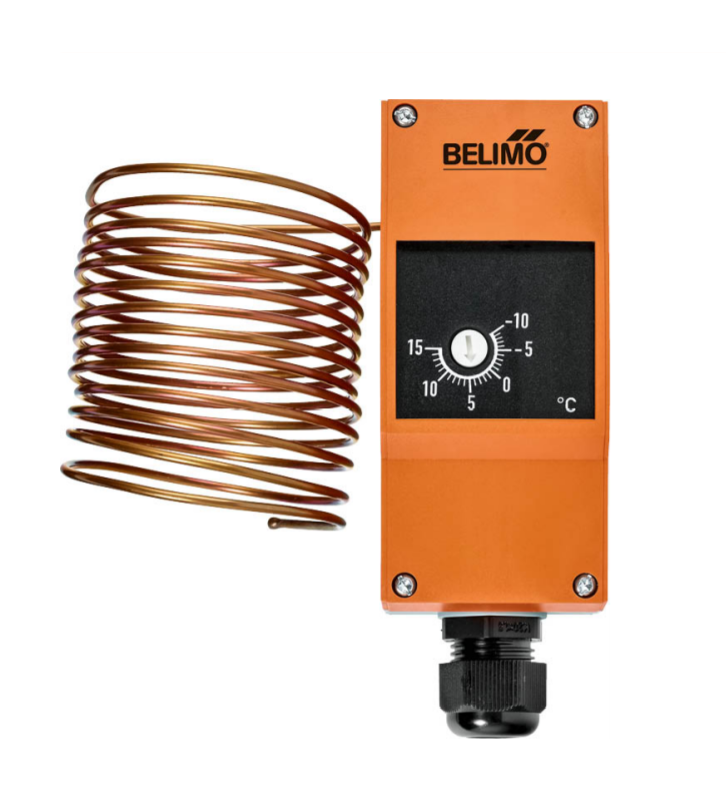

01ATS-105XC - Belimo Air Frost Switch, IP65, Manual reset, 6 m capillary

For monitoring the temperatures of water/air heaters in ventilation and air conditioning systems to prevent frost damage to the cooling registers.

The frost alarm is provided with a 1-pole changeover switch.

Electrical connection - Spring loaded terminal block max. 2.5 mm²
Cable entry - Cable gland with strain relief M20x1.5 mm, for cable Ø6...12 mm
Output signal passive temperature - Changeover
Output signal temperature switch note - AC 230 V 16 (2.5) A @ Switch position 1-2, AC 230 V 2 (0.4) A @ Switch position 1-4
Switching reliability - min. switching current 100 mA @ AC 24 V
Application - Air
Measuring values - Temperature
Measuring range temperature - -10...15°C [15...60°F] Default setting: 5°C [41°F]
Setting range Temperature - -10.ii..15°C
Switching differential (temperature) - 1.5 K (±1 K tolerance)
Accuracy temperature passive - Setting accuracy: ±2 K
Cable gland - PA6, black
Housing - Bottom: PA (RAL7001, silver grey), Cover: ABS with inspection glass (PMMA), Seal: NBR
Capillary - Copper
