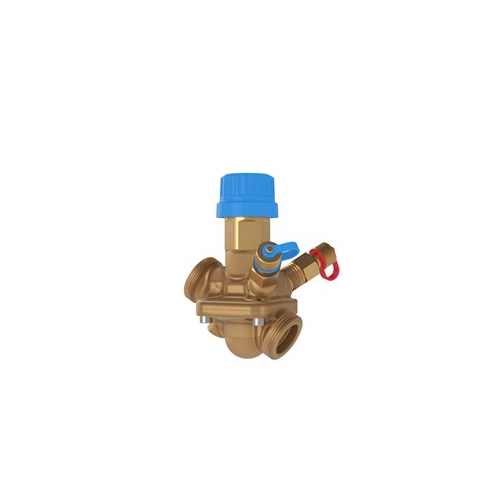

003Z1213 Danfoss AB-QM Pressure independent Control Valves Screwed c/w Test Points 20mm PIC Valve Flow 900 l/hr | Danfoss Valves

Regular Price £179.99 Special Price £173.99 £144.99 Price match guarantee
Only 5 left
In stock
SKU
003Z1213
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeWater Valve
ManufacturerDanfoss
Valve typePICV (Pressure Independent Control Valve)
PressurePN 16
DN (mm)DN 20

The Danfoss AB-QM is a Pressure Independent Control Valve (PICV) with an industry-leading user-friendliness, outstanding precision, and prolonged life.

The Danfoss 003Z1213 is a Pressure Independent Control Valve used in ventilation systems.

The Pressure Nominal is PN 16.

The Diameter Nominal is DN 20.

Free delivery and delivery within 1-2 days are available for Danfoss products that are currently in stock at iacs.

For more information, refer to the datasheet in the Danfoss Manual.

The Danfoss AB-QM is a Pressure Independent Control Valve (PICV) that combines high accuracy and durability with market leading user-friendliness. The design of the AB-QM is fully geared towards making your project run on time and on budget while delivering the most efficient HVAC system.

Pressure independent valves are control valves with an automatic balancing function. An in-built pressure controller keeps a constant differential pressure over the control valve, ensuring full authority and automatic flow limitation. By combining two functions in one, control and automatic hydronic balance, Danfoss PICVs provide a cost-efficient solution for the challenges faced by forward-looking designers of HVAC systems.

The Danfoss AB-QM delivers the lowest total cost of ownership because:

Precise flow limitation ensures always the right flow at the right time, ensuring minimized pumping energy

Full range from DN15 to DN250 for flows up to 407 m3/h

Available with internal and external thread for universal applicability

Danfoss’ durability test ensures the AB-QM has best-in-class resistance to scaling and clogging

Easy troubleshooting because of the always visible setting and the ability to measure flow through test plugs

Minimum hysteresis for stable and precise temperature control

Future-ready with a range of smart actuators, ready for data driven and optimized HVAC 4.0
